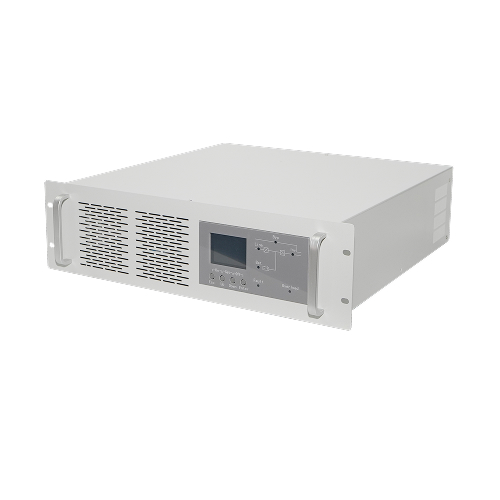

AT series intelligent inverters offer high
efficiency, strong grid adaptability, high reliability,zero-delay transfer,andstrongoverload capacity.With RS-485
interface, faultdry contact outputandLCDdisplay.Applicable in power plant,substations,telecom,relay protection,emergency lightingand
other area.

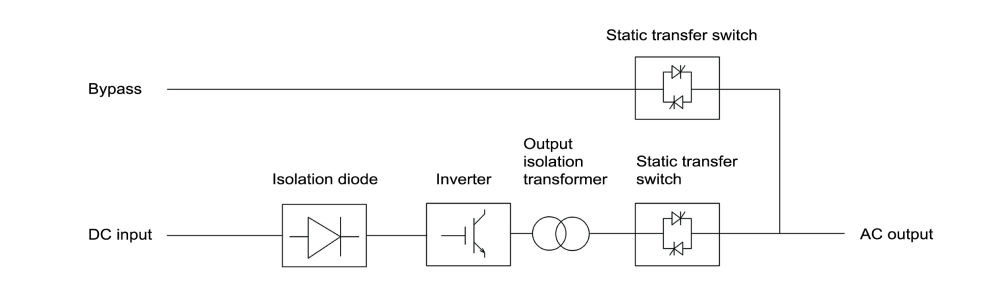

1)Two operating modes are
available: Bypass Priority Mode and Inverter Priority Mode.
2)The batteryorDC inputis witha
built-in Anti-backflow diode to protect both the battery andDC
inputpower.
3)withprotection against lightning, surge voltage, and electrostatic discharge (ESD).
4)With faultalarm
and protectionsuch as:bypass
input over/undervoltage, inverter output over/undervoltage,batteryandDC input
undervoltage, system fault, overload transfer, short circuit, andsystemover-temperature.
|
Power
|
DC input
|
AC output
|
Bypass input
|
Transformer External
|
Transformer Internal
|
|
3KVA
|
220VDC
|
Single
Phase
220VAC
|
Single
Phase
220VAC
|
AT-IV3K220DC1P-ET
|
AT-IV3K220DC1P-IT
|
|
110VDC
|
AT-IV3K110DC1P-ET
|
AT-IV3K110DC1P-IT
|
|
5KVA
|
220VDC
|
Single
Phase
220VAC
|
Single
Phase
220VAC
|
AT-IV5K220DC1P-ET
|
AT-IV5K220DC1P-IT
|
|
110VDC
|
AT-IV5K110DC1P-ET
|
AT-IV5K110DC1P-IT
|
|
8KVA
|
220VDC
|
Single
Phase
220VAC
|
Single
Phase
220VAC
|
AT-IV8K220DC1P-ET
|
~
|
|
110VDC
|
AT-IV8K110DC1P-ET
|
~
|
|
10KVA
|
220VDC
|
Single
Phase
220VAC
|
Single
Phase
220VAC
|
AT-IV10K220DC1P-ET
|
~
|
|
110VDC
|
AT-IV10K110DC1P-ET
|
~
|
|
15KVA
|
220VDC
|
Single
Phase
220VAC
|
Single
Phase
220VAC
|
AT-IV15K220DC1P-ET
|
~
|
|
110VDC
|
AT-IV15K110DC1P-ET
|
~
|
|
30KVA
|
220VDC
|
Single
Phase
220VAC
|
Single
Phase
220VAC
|
AT-IV30K220DC1P-ET
|
~
|
|
110VDC
|
AT-IV30K110DC1P-ET
|
~
|
|
60KVA
|
220VDC
|
Single
Phase
220VAC
|
Single
Phase
220VAC
|
AT-IV60K220DC1P-ET
|
|
|
100KVA
|
220VDC
|
Single
Phase
220VAC
|
Single
Phase
220VAC
|
AT-IV100K220DC1P-ET
|
~
|
